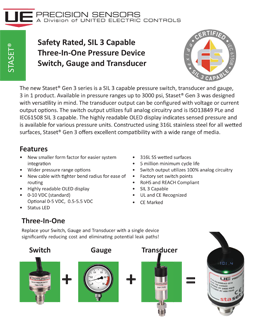

Staset® Series
Designed for semiconductor fabrication and OEM process equipment, Staset combines the safety of a tamper proof switch, the output of a transducer, and the convenience of a gauge in a reliable, cost effective 1 1/8” diameter package. The latest generation Staset series is also a SIL 3 safety capable device.
Available in pressure ranges up to 3000 psi with various voltage output options. The switched output utilizes full analog circuitry and is ISO13849 PLe capable and IEC61508 SIL3 capable. The OLED display indicates the sensed pressure and has several options for units of measure. Constructed using 316L stainless steel for all wetted surfaces, Staset offers excellent compatibility with a wide range of process media.
Features
- New smaller form factor for easier system integration
- Wider pressure range options
- New flexible cable for ease of routing
- Highly readable OLED display
- Switch output utilizes 100% analog circuitry
- Fully backwards compatible with older generation Stasets
- Certified SIL 3 Safety Capable
- Functional Safety Video
Specifications *
| Medium |
EA Compatible with 316L CRES |
EG Compatible with 316L CRES |
| Type | Factory Set | Factory Set |
| Full Scale Range | 0 – 15 PSIA, 0-30 PSIA 0 – 100 PSIA, 0-300 PSIA, 0 – 1000 PSIA, 0-3000 PSIA |
0 – 15 PSIG, 0-30 PSIG 0 – 100 PSIG, 0-300 PSIG 0 – 1000 PSIG, 0-3000 PSIG |
| Proof Pressure | 1.5x range | 1.5x range |
| Burst Pressure | 2X RANGE | 2X RANGE |
| Deadband | 1% to 98% F.S. | 1% to 98% F.S. |
| Switching Response | 10 ms Max. | 10 ms Max. |
| Switching Output | 0.25A AC/DC 0.4A peak, 50V | 0.25A AC/DC 0.4A peak, 50V |
| Switch Repeatability | ± 0.25% F.S. | ± 0.25% F.S. |
| Input Power | 16 to 28VDC | 16 to 28VDC |
| Analog Outputs | 0 – 10VDC, 0 – 5 VDC, 0.2-0.5 – 5.5VDC |
0 – 10VDC, 0 – 5 VDC, 0.2-0.5 – 5.5VDC |
| Status LED | open / close – Green / Red | open / close – Green / Red |
| Operating Temp. Range | 0° to 60°C | 0° to 60°C |
| Display Accuracy | 0LED Display, 0.25% F.S. at 22°C | 0.25% F.S. at 22°C |
| Min. Operating Life | 5 Million cycles | 5 Million cycles |
| Approvals | UL, CE, SIL3, ROHS, REACH | UL, CE, SIL3, ROHS, REACH |
| Warranty | 60 Months (36 Months for Previous Gen) | 60 Months (36 Months for Previous Gen) |
| Media Connections | 1/4″ male end seal, 5 Ra finish 1/4″ flow through male or female. 1.125 “C” seal |
1/4″ male end seal, 5 Ra finish 1/4″ flow through male or female. 1.125 “C” seal |
* Specifications subject to change
