XHP Series Transducer
Precision Sensors XHP Series High Purity Pressure Transducer is designed for accurate, reliable, long-term sensing of process gases used in the manufacturing of semiconductor products. LED status light verifies that the transducer is operating correctly. Color band labels are provided with the unit to allow the installer to mark and identify the measured gas. Precision Sensors products are designed and manufactured to the requirements of AS9100/ISO 9001 Quality Management System.
Features
- Externally Visible Operating Status Indicator
- ATEX Certified for hazardous locations option available
- 5 Million Cycle Life
- Ranges from 100 to 3000 psig
- Compound Range Available
- 5 Year Warranty
Specifications *
| Analog Output | 4-20 ma, 0-5 VDC, 1-5 VDC |
| Full Scale Range | 0-100 PSIG, 0-3000 PSIG |
| Supply Voltage | 12-30 VDC |
| Proof Pressure | 1.5x Rated Pressure |
| Burst Pressure | 3x Rated Pressure |
| Accuracy | +0.5% FS |
| Compensated Temperature Range | 0-45°C |
| Operating Temperature Range | 0-55°C |
| Surface | 10 Ra Max |
| Wetted Volume | 0.075 inch? |
| Wetted Materials | 316L Stainless Steel |
| Case Seal | Environmental Seal with Capillary Vent Tube |
| Response Time | <5msec |
| Cycle Life | 5 Million Cycles Minimum |
| Seal Integrity | <1×10-9cc/ sec He |
| Approvals | UL 61010-1 Part 1 General Requirements ANSI/ISA 12.12.01-2013. Complies with EN60079-0:2012 +A11:2013, EN60079-11:2012 Per Demko 19 ATEX 2238U |
| Warranty | 60 Months |

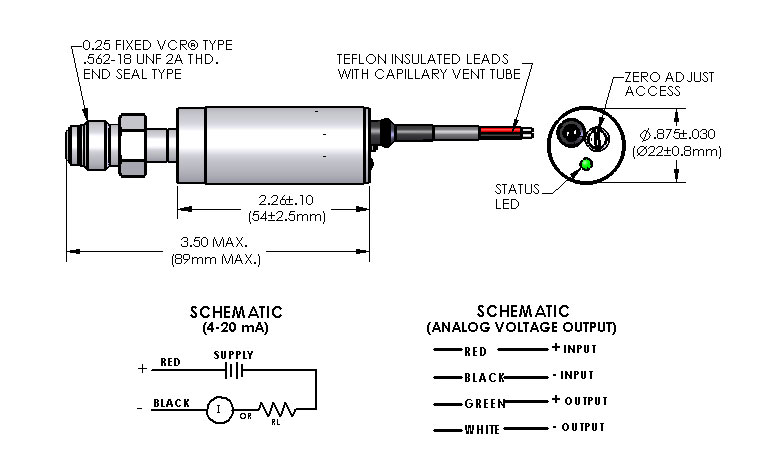

| Pressure Connection | 1/4 Male VCR®, + Female Swivel VCR®, + Male Swivel VCR®, 1 1/8 Surface Mount C Seal per Semi F86-0304 |
| Electrical Connection | Free Leads 24 Inches Standard (2 Wires 4-20 mA, 3 Wires Voltage) Optional Integrated Connector: 2 Pins for 4-20 mA, 3 Pins for Voltage |
* Specifications subject to change
