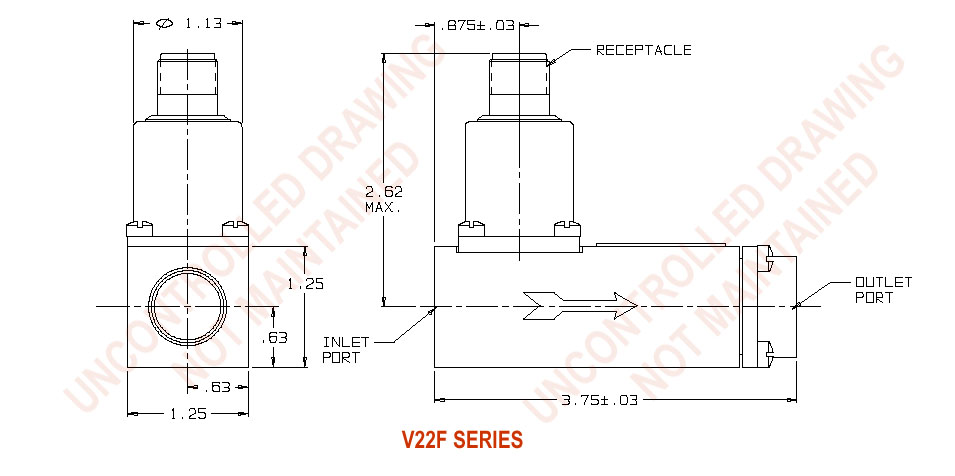

V22F Series Flow Switch
The V22F features the widest range of setpoints available in the Precision Sensors flow switch product line. The switch utilizes dual sensing element design featuring a sliding piston which interfaces with a mechanical vane. All models include hermetically sealed contacts making it ideal when vapor ignition is a concern.
Typical uses include coolant flow systems.
Common fluids are water, PAO, red oil.
For qualification information, please consult the sales or engineering departments.
Features
- Intended for liquid media
- Non-magnetic piston and vane actuated design
- Operates independent of mounting orientation
- Standard construction is CRES or aluminum, custom construction is available upon request
- Wetted materials are CRES, aluminum, tin-plated brass alloys
- Hermetically sealed contacts
Specifications *
| Available settings | 1.0 to 10.0 gpm |
| Repeatability | 0.05 gpm or 3% of setting |
| Deadband | 0.15 gpm or 10% of setting |
| Proof pressure | 150 psig (high pressure configurations available) |
| Pressure drop | |
| Operating temperature range | -40 to 250°F |
| Typical weight | 0.6 lbm standard configuration |
| Electrical rating | 7 Amps max. at 28 VDC |
| Switch configuration | SPST, SPDT |
| Fluid connections |
|
| Electrical connections |
|
| Warranty | 18 months |
* Specifications subject to change
