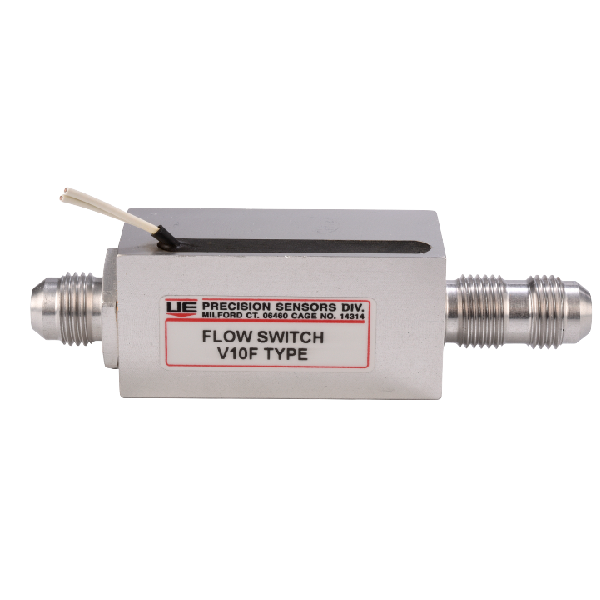

V10F Series Flow Switch
The V10F is one of the simplest and most economical flow switches manufactured by Precision Sensors. A magnetic float is displaced in response to flowing media triggering a magnetically actuated reed switch. All models include hermetically sealed contacts making the V10F ideal when vapor ignition is a concern.
Typical uses include coolant flow systems.
Common fluids are water, PAO, red oil.
For a similar switch with a higher electrical capacity with no magnetic effect requirement, refer to the V21F. For qualification information, please consult the sales or engineering departments.
Features
- Intended for liquid media
- Standard construction is CRES or aluminum, custom construction is available upon request
- Wetted materials are CRES or aluminum
- Hermetically sealed contacts
- Optional check valve configuration
Specifications *
| Available settings | 0.2 to 3.0 gpm |
| Repeatability | 0.05 gpm or 5% of setting |
| Deadband | 0.1 gpm or 10% of setting |
| Proof pressure | 1000 psig |
| Pressure drop | Approx. 6 psid at 5 gpm (model and flowrate dependent) |
| Operating temperature range | -40 to 165°F |
| Typical weight | 0.3 lbm standard configuration |
| Electrical rating | 0.5 Amps or 10 watts max. at 28 VDC |
| Switch configuration | SPST, SPDT, DPST, DPDT |
| Fluid connections |
|
| Electrical connections |
|
| Warranty | 18 months |
* Specifications subject to change
