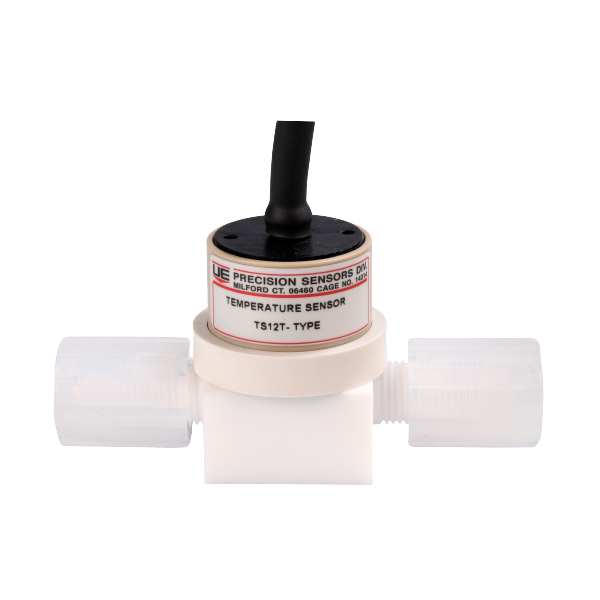

TS12T Series Temperature Sensors
The TS12T series Temperature Sensor utilizes a Platinum Wirewound RTD element that is hermetically sealed within a 300 series stainless steel housing with integral Military type receptacle or free wire leads. The pressure fitting, probe length and receptacle are customizable to meet specific application requirements. The temperature sensor can be configured using temperature coefficients of .00385 (European) or .00392 (American). Nominal resistance values of 100, 500 and 1000 ohms can be specified. Custom resistance vs. temperature curves may also be available.
Typical applications include: Oil, Fuel, Water and coolant temperature monitoring
Features
- Fast response times
- Low conductivity loss
- High proof and operation pressures
- Custom configurable
- Shock and vibration resistance
- High accuracy over a wide temperature range
- MTBF exceeding 200,000 hours
Specifications *
| Media | Any gas or liquid compatible with stainless steel |
| Temperature Range | -200° to 400° F |
| Type | Factory Set |
| Alpha | 0.00385 (European) or 0.003920 (American) |
| Deviation | ± 0.8 OHMs up to 400° F |
| Proof Pressure | Up to 12,500 PSI |
| Mounting Fitting | As required – typically MS33656 |
| Probe Ø & Length | As required |
| Current | 5 mA max |
| Electrical Connections | MS Connector Free leads |
| Typical Weight | 4 oz. |
| Qualification | Consult Factory |
| Warranty | 18 Months |
* Specifications subject to change
