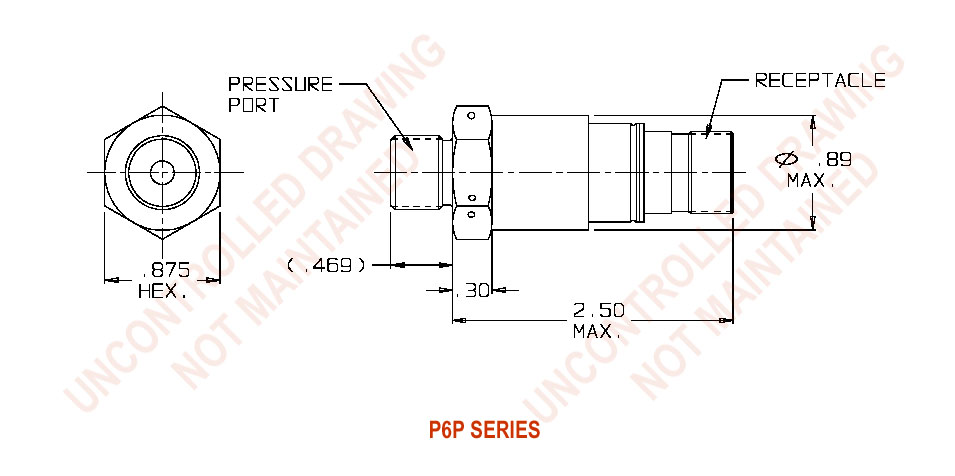

P6P Series Gauge Pressure Switch
The P6P piston style gauge pressure is designed for the most intensive vehicles applications and is among the most rugged pressure switches in the Precision Sensors product line. A heat treated stainless steel piston and patented elastomer seal is well suited for high-pressure hydraulic and oil applications. The compact design can be customized to fit specialized requirements.
Typical uses include aircraft landing gear systems, missile launcher, thrust reverser valves, rotor brake systems, steering systems.
Typical media includes red oil, Skydrol, inert gasses.
For qualification information, please consult the sales or engineering departments.
Features
- Intended for liquid or gaseous media
- Rugged hardened stainless steel piston
- Wetted material limited to 300 series CRES and elastomer seal (varies by media)
- Hermetically sealed contacts
- High vibration and shock resistance
- Proven negative rate Belleville spring design for high cycle life and repeatability
Specifications *
| Available settings | 500 to 4000 psig |
| Repeatability | 50.0 psig + 1.5% of setting |
| Deadband | 100.0 psig + 5% of setting |
| Proof pressure | 7500 psig |
| Operating temperature range | -65 to 250°F (high temperature configurations available) |
| Typical weight | 0.22 lbm standard configuration |
| Electrical rating | 7 Amps max. at 28 VDC |
| Switch configuration | SPST, SPDT, DPST, DPDT |
| Fluid connections |
|
| Electrical connections |
|
| Warranty | 18 months |
* Specifications subject to change
