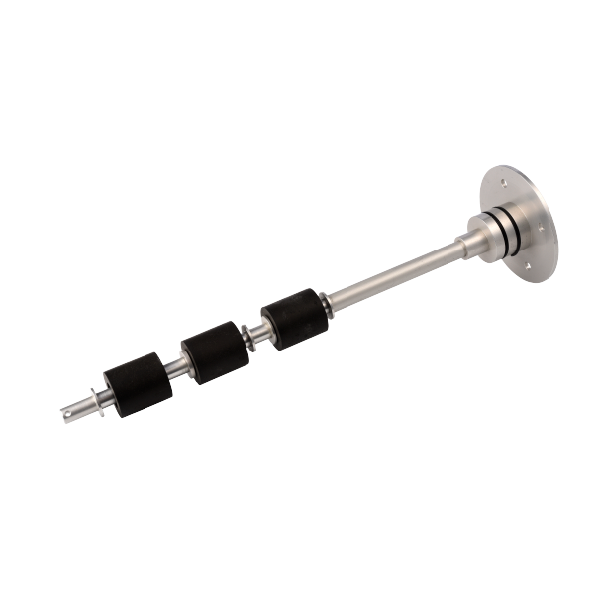

L14F Series Liquid Level Switch
The L14F is the solution to many liquid level applications. With lengths up to 25 inches and top or bottom mounting options, these units can be configured to switch at various rising or falling level locations relative to the mounting surface. The construction of the L14F allows for multiple switch points with one mounting hole resulting in space savings for crowded applications.
Features
- Top or bottom mount
- High pressure capability
- Multiple switching positions
- Hermetically sealed switch contacts
Specifications *
| Media | Liquid |
| Type | Factory Set |
| Available Settings | Up to 12 inches |
| Repeatability | Approx. 0.1″ |
| Proof Pressure | 130 PSIG |
| Operating Temp. Range | -65°F to 180° F |
| Wetted Materials | Al, Stainless, Buna-N, Teflon |
| Mounting Style | Vertical: Top or Bottom Mount |
| Electrical Connections | Connectors, Free Leads |
| Electrical Rating | Up to 0.5 Amp or 10Watts @ 28VDC |
| Typical Weight | Depends On Length |
| Qualification | Consult Factory |
| Warranty | 18 Months |
| Options | High Temperature High Pressure |
* Specifications subject to change
