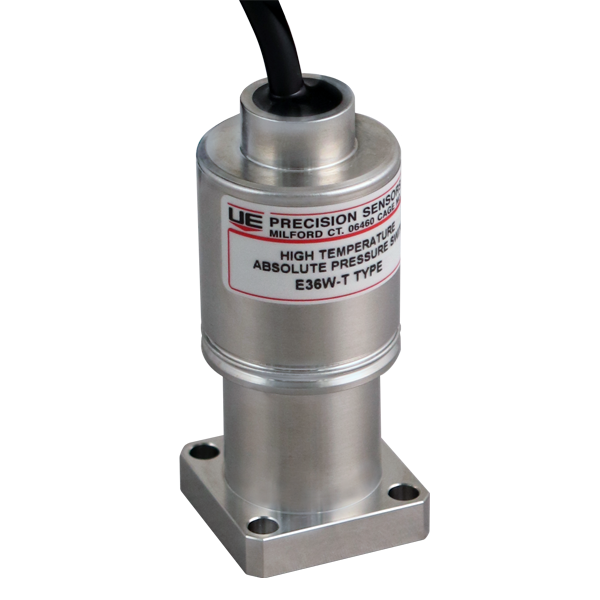

E-W Series Absolute Pressure Switch

The E48W, E36W and E17W series absolute high purity pressure switches offer accurate, repeatable switching for monitor/control and alarm/shut down protection. Specifically designed for high purity gas systems, and to operate at pressure points referenced to absolute zero. These products should be specified when changes in atmospheric pressure would have an adverse effect on switch operation or when hermetically sealed contacts are required.

Features

Specifications *

E48W E36W E17W
Available Settings 10 to 150 Torr 100 to 1500 Torr 1000 to 5000 Torr
Deadband 20 Torr + 5% of Setting 40 Torr + 6% of Setting 200 Torr + 7% of Setting
Repeatability ± 5 Torr + 2% of Setting ± 15 Torr + 2% of Setting ± 75 Torr + 4% of Setting
*Internal Volume 2.22 CC 1.06 CC 0.46 CC
**Proof Pressure 0 psia – 15 psig 0 psia – 25 psig 0 psia – 300psig
**Operating Temp.  Range 0° to 130° F 0° to 130° F 0° to 130° F
Finish 5 Ra typical 5 Ra typical 5 Ra typical
Wetted Materials 316L per F20 316L per F20 316L per F20
Media Connections 1/4″ end seal type 1/4″ end seal type 1/4″ end seal type
1.125″ “C” Seal 1.125″ “C” Seal 1.125″ “C” Seal
NW25 flange
Electrical Connections Free Leads Free Leads Free Leads
Crimp Type Connectors Crimp Type Connectors Crimp Type Connectors
D Sub D Sub
Min. Operating Life 5 Million cycles 5 million cycles 1 million cycles
Approvals UL, CE, ISO 13849 UL, CE, ISO 13849 UL, CE, ISO 13849
Warranty 36 Months 60 Months 36 Months
*With 1/4″ male end seal type
**Higher temperature range and proof pressures available

* Specifications subject to change
