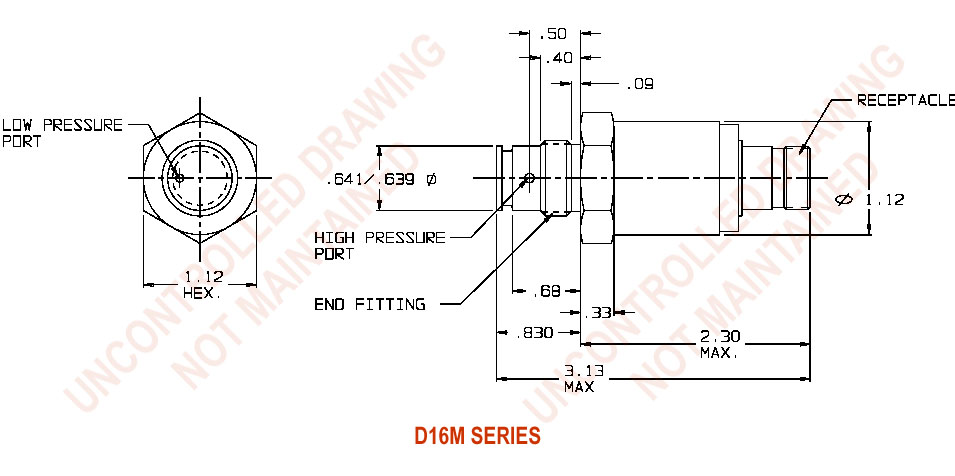

D16M Series Differential Pressure Switch
The D16M is the most versatile and lowest profile differential pressure switch in the Precision Sensors product line. It incorporates proven diaphragm and snap-spring technology into a compact package which features excellent repeatability and a higher level of resistance to shock and vibration than similar models. Optional hermetically sealed contacts make the D16M well suited when vapor ignition is a concern.
For a similar switch with a higher resistance to shock and vibration, refer to the D56M.
Typical uses include fuel and oil filter systems.
For a more sensitive model, refer to the D56M. For qualification information, please consult the sales or engineering departments.
Features
- Intended for liquid or gaseous media
- Environmentally sealed with optional hermetically sealed contacts
- Proven diaphragm and snap-action spring technology for high cycle life
- Plug-in style fitting provides low profile design
Specifications *
| Available settings | 4.0 to 75.0 psid |
| Repeatability | 0.3 psid + 3% of setting |
| Deadband | 2.0 psid + 5% of setting |
| Case proof pressure | 150 psig |
| Differential proof pressure | 750 psid |
| Operating temperature range | -65 to 160°F |
| Typical weight | 0.25 lbm standard configuration |
| Electrical rating | 7 Amps max. at 28 VDC |
| Switch configuration | SPST, SPDT |
| Pressure connections |
|
| Electrical connections |
|
| Warranty | 18 months |
* Specifications subject to change
